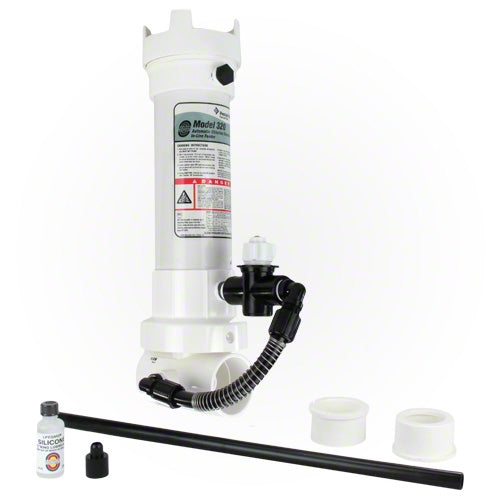

Pentair Rainbow 320 In-Line Chlorinator (R171096)

$849.00 CAD

Sale Sold out

Title Pentair Rainbow Automatic Chlorinator

Quantity

Description

Our Pentair Rainbow 320 is an in-line tablet feeder that automates chlorination on the return line—after the filter and heater—so water stays consistently sanitized without daily hand dosing. The top-loading, sealed chamber keeps fumes contained while the external control valve lets us fine‑tune feed rate for steady residuals. It’s a clean, low‑touch way to keep pools clear through hot spells and busy swim weekends.

Key Features

In‑line install on the return line for hands‑off, consistent tablet feed.
Top‑loading, sealed canister for safe, easy refills.
External control valve for precise chlorination adjustments.
Accepts slow‑dissolving 3" trichlor or 1" trichlor/bromine tablets.
2" slip ports with bushings for 1½" PVC—easy tie‑in on most pads.
NSF listed when used with Rainbow flow‑indicating device (R172276).

Technical Specifications

Specification	Value
Part Number	R171096
Type	In‑line automatic chlorine/bromine feeder
Tablet Capacity	11 × 3" tablets or 98 × 1" tablets
Treats Pool Volume	6,500–27,000 gal (24.6–102.2 kL) bottom feed; 18,000–70,000 gal (68.1–265.0 kL) top feed
Port Size	2" slip (includes 2" × 1½" reducer bushings)
Max Operating Pressure	50 psi (345 kPa)
Installation Location	Return line, downstream of filter/heater
Dimensions	~21" H × 7" W × 12" D (service clearance ~22¼")
Weight	~4.5 lb (2.0 kg)
Certifications	NSF listed (with Rainbow R172276 flow‑indicating device)

Important

Use only slow‑dissolving trichlor or bromine tablets. Never use calcium hypochlorite.
Install after the heater (or after the filter if no heater). Do not install in copper plumbing.
Relieve system pressure before opening the lid; keep O‑ring clean and lubricated.

Warranty

1‑year limited manufacturer warranty.
